Position
Front, Underbody or Wing
Profile
Length, Height and Thickness
Mounting
Hole Pattern and Reference Edge
Application
Equipment and Service Conditions
Begin with the Product Facts Published by SENTHAI
These published descriptions define the general product family. They do not replace confirmation of the exact blade configuration required for a specific machine or application.
01
Published Standard Description
The official product page describes its standard as a flat, 3/4-inch-thick metal blade with a single carbide insert brazed onto the face.
02
Published Mounting Positions
SENTHAI states that carbide snow plow blades can be mounted on the front, underbody and wing according to the application.
03
Published Materials
The product page identifies micro-grain tungsten carbide and premium C45 steel as materials used for this product family.
04
Size and Customization
The official page states that various sizes and custom blades are available. Feasibility and the approved dimensions must be confirmed for the actual request.
Start with the Mounting Position and Current Arrangement
Front, underbody and wing positions do not automatically use the same blade geometry, hole pattern or carbide configuration. Identify the installed position before comparing dimensions.
✓ State whether the blade is for a front, underbody or wing position
✓ Provide the equipment make and model as supporting information
✓ Photograph the complete blade in its installed orientation
✓ Record any adapter, holder, backing bar or mating component
✓ Identify the reference end and the road-facing edge
Important: the equipment model alone may not confirm the installed blade. Use the physical blade, an approved drawing or a known part number as the primary reference whenever possible.

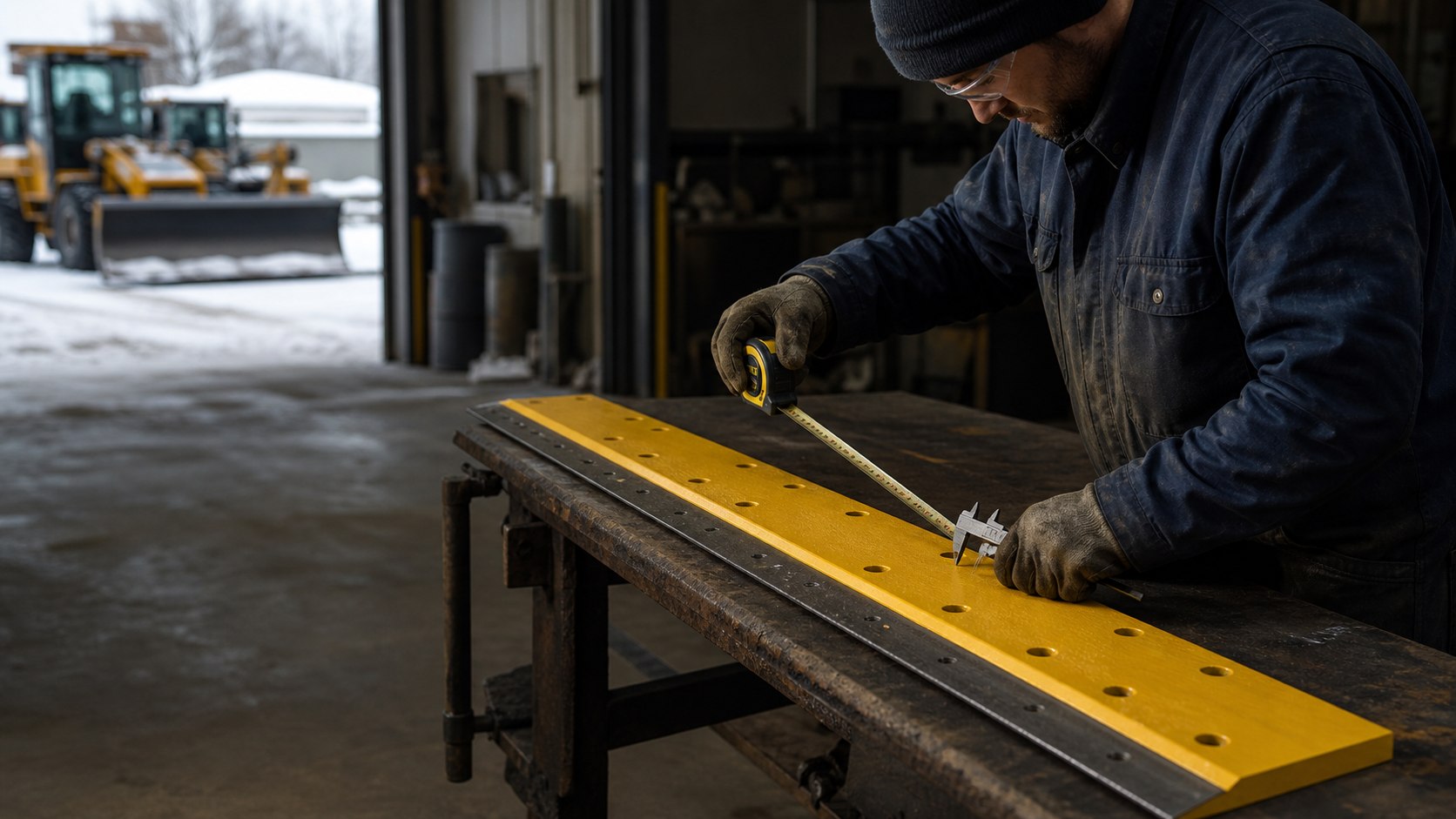

Record the Blade Geometry from One Consistent Reference
Use one end and one blade edge as the reference for every measurement. Mark the same orientation on photographs, sketches and samples.
Overall Length
Measure end to end. Note whether the ends are square, angled, relieved or otherwise different from a simple rectangle.
Height and Thickness
Measure the steel profile at clearly identified locations. Record any step, bevel, wear surface or attached component.
Hole Diameter and Shape
Record whether each mounting feature is round, slotted, countersunk or otherwise shaped. Include unused or irregular holes.
Hole Location
Measure center-to-center spacing and the distance from the same reference end and blade edge to every hole center.
Do not apply the published 3/4-inch standard description to every requested blade. Measure the actual item or use the approved drawing because custom and application-specific configurations may differ.
Describe the Carbide Configuration, Not Only the Steel Body
SENTHAI’s product page describes tungsten carbide inserts brazed into milled grooves in the steel blade or overlaid on the blade surface. The exact insert layout and blade construction must be reviewed for the requested configuration.
✓ Photograph the full cutting edge from both faces
✓ Record the insert location and continuous or segmented layout
✓ Identify the road-facing side and installed orientation
✓ Note visible grooves, overlays, steps, bevels or backing components
✓ Include close photographs of both blade ends and any damaged area
A photograph may show the arrangement, but it does not reliably establish hidden dimensions, material grade or manufacturing tolerance. Add measured data or an approved drawing.
Add the Application Information Needed for Technical Review
A dimensionally similar blade may still require a different configuration. Describe how and where the blade will be used without substituting assumptions for measured information.
Mounting and Equipment
State the mounting position, equipment make and model, current blade arrangement and any holder or adapter that interfaces with the blade.
Operating Environment
Describe the road or surface type, winter conditions and the intended work. This information supports review but does not replace dimensional confirmation.
Commercial Requirements
Provide the estimated quantity, delivery destination, packaging or labeling requirements and any documents that must be reviewed before quotation.
Prepare One Clear Specification Package
Label every drawing, photograph and measurement with the same blade name or reference number so the technical and commercial information stays connected.
✓ Dimensioned drawing or clearly marked measurement sketch
✓ Current manufacturer part number, if available
✓ Photographs of the full blade, ends, mounting pattern and cutting edge
✓ Sample availability and current wear condition
✓ Mounting position, equipment information and intended application
✓ Estimated quantity and delivery destination
Information That Still Requires Confirmation
Do not publish or approve an order-specific value unless it has been confirmed for the actual request.
✓ Final dimensions and tolerances
✓ Steel and carbide configuration
✓ Hole pattern and fit
✓ Quantity, packaging and labeling
✓ Inspection documents and acceptance criteria
✓ Price, lead time and shipment terms
Keep Published Product Facts Separate from Order-Specific Approval
This distinction prevents a general website description from being treated as a universal specification.
Published Product-Family Information
✓ Front, underbody and wing applications are identified
✓ A flat 3/4-inch-thick standard description is published
✓ Tungsten carbide and C45 steel are identified
✓ Various sizes and custom blades are stated as available
Confirm for the Actual Requirement
✓ Exact dimensions, tolerances and hole pattern
✓ Exact insert layout and blade construction
✓ Compatibility with the installed equipment
✓ Quantity, commercial terms and order documentation
Continue with the Relevant Technical Resource
Each link below has a distinct purpose and matches the page it opens.
Official Carbide Blade Product
Review SENTHAI’s published carbide snow plow blade product-family description.
Blade Measurement Guide
Follow the step-by-step process for recording a replacement blade and mounting pattern.
Drawing Requirements
See which drawing references help communicate a custom snow plow blade requirement.
Frequently Asked Questions
Answers are limited to published product-family information and the inputs required for a technical review.
Can the same carbide snow plow blade be used in front, underbody and wing positions?
Do not assume one configuration fits every position. SENTHAI identifies front, underbody and wing applications, but the dimensions, mounting arrangement and blade construction should be reviewed for the actual position and equipment.
Is every carbide snow plow blade 3/4 inch thick?
No universal conclusion should be made from that number. The official product page describes its standard as a flat, 3/4-inch-thick metal blade, while also stating that various sizes and custom blades are available. Confirm the actual thickness and profile for the requested item.
What is the best reference for confirming a replacement blade?
Use an approved dimensioned drawing, a verified part number or a measured physical sample whenever available. Equipment make and model, photographs and application information should support that reference rather than replace it.
Which mounting-hole measurements are needed?
Record the number and shape of the holes, diameter or slot dimensions, center-to-center spacing, distance from one consistent reference end to every hole center and vertical position from one consistent blade edge.
Can price and lead time be determined from this guide?
No. Price and lead time depend on the confirmed specification, quantity, destination and commercial requirements. Submit the actual requirement for review.
